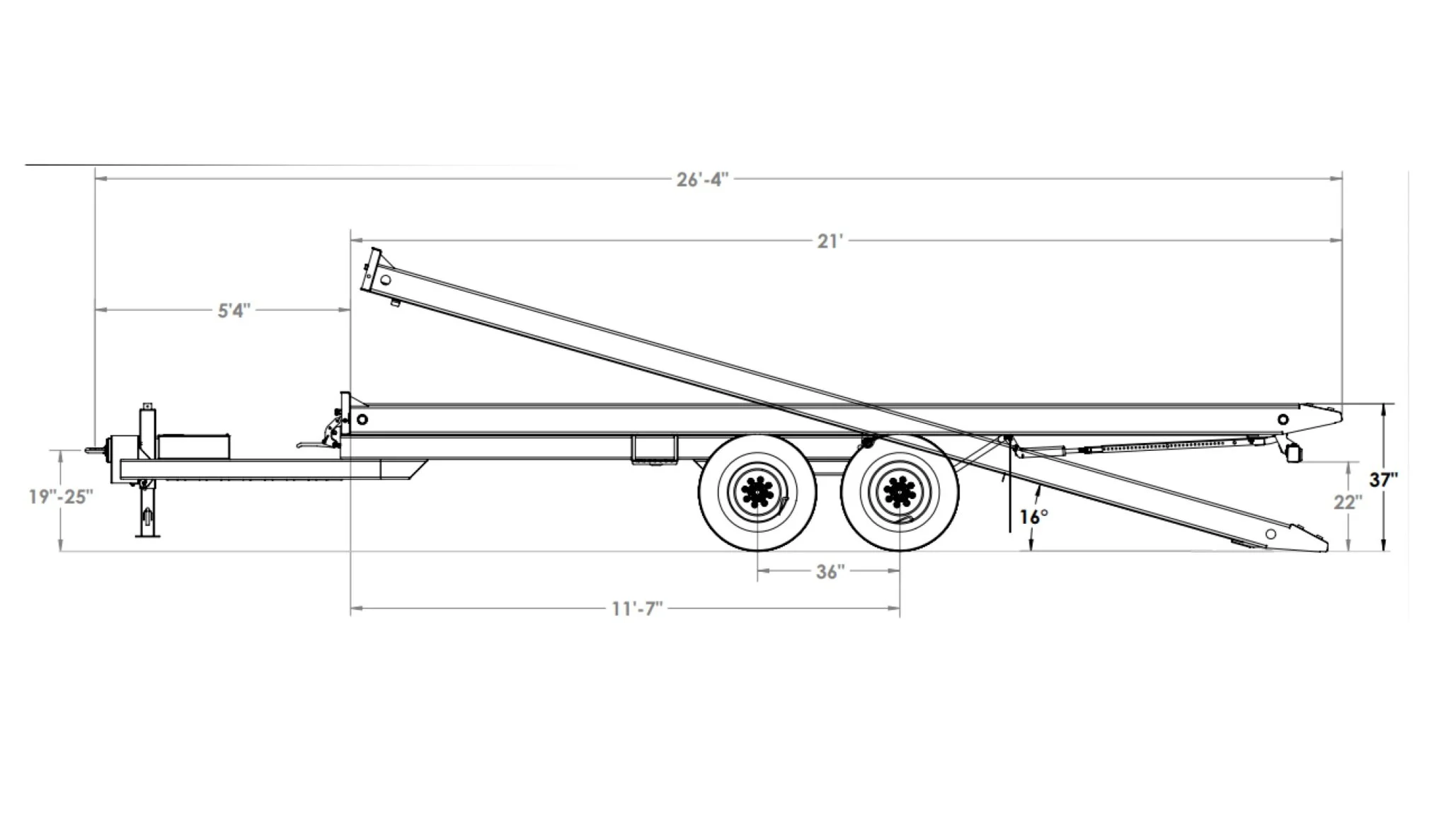

TILT DECK
12T
Tilt Deck | Electric Brakes
12T Specs↓
GVWR 16,800 lbs
Capacity (Distributed) 11,640 lbs
Base Trailer Weight 5,160 lbs
Frame Construction 6" x 4" Tubular Subframe and Perimeter Rails
Crossmembers 3" x 2" Tubular Crossmembers on 16" centers
Hitch 2-5/16" Coupler Standard OR Optional Lunette Eye, Adjustable Height
Landing Gear 12,000 lb Capacity with Drop Foot
Safety Chains Qty 2, 3/8 x 36" Grade 70 High Tensile Strength with Slip Hooks and Safety Latches
Deck Latch Over-Center Standard Latch and Safety Pin
Cushion Cylinder 3" x 12" with Internal Metered Flow to Cushion Loading and Unloading
Load Securement 10 each (5 per side) 2-way Chain Slot/Stake Pocket System
Tool Compartment Combination Open Tool Tray and Lockable Lid
Axles Qty 2 - 7,000 lb Capacity
Hubs 8 on 6.5 Bolt Circle 9/16" Cone Type Lug Nuts
Brakes 12" x 2" Electric Brakes both Axles with 12 Volt Sealed Breakaway System
Suspension Rubber Torsion
Wheels 16" x 6" 8 on 6.5" Bolt Pattern
Tires 235/85R Radial Load Range G
Finished Preparation Sandblast
Finish Coating 1 Stage Zink Based Paint
Electrical Phillips Sealed Harness System with Rubber Isolated LED Lighting
Decking 2" Rough Surface No.1 Grade Fir with Fasteners at every other Crossmember
Decking Width 8 Feet
16T
Tilt Deck | Electric Brakes
16T Specs↓
GVWR 19,200 lbs
Capacity (Distributed) 14,040 lbs
Base Trailer Weight 5,160 lbs
Frame Construction 6" x 4" Tubular Subframe and Perimeter Rails
Crossmembers 3" x 2" Tubular Crossmembers on 16" Centers
Hitch 2-1/2" Lunette Eye, Adjustable Height
Landing Gear 12,000 lb Capacity with Drop Foot
Safety Chains Qty 2, 3/8" x 36" Grade 70 High Tensile Strength with Slip Hooks and Safety Latches
Deck Latch Over-Center Type with Tension Adjuster and Safety Pin
Cushion Cylinder 3" x 12" with Internal Metered Flow to Cushion Loading and Unloading
Load Securement 10 each (5 per side) 2-way Chain Slot/Stake Pocket System
Tool Compartment Combination Open Tool Tray and Lockable Lid
Axles Qty 2 - 8,000 lb Capacity
Hubs 8 on 6.5 Bolt Circle 5/8" Cone Type Lug Nuts
Brakes 12-1/4" x 3 3/8" Electric Brakes both Axles with 12 Volt Sealed Breakaway System
Suspension Rubber Torsion
Wheels 17.5" x 6.75" Uni-Mount 8 on 6.5" Bolt Pattern
Tires 215/75R 17.5 Radial Load Range H
Finished Preparation Sandblast
Finish Coating 1 Stage Zink Based Paint
Electrical Phillips Sealed Harness System with Rubber Isolated LED Lighting
Decking 2" Rough Surface No.1 Grade Fir with Fasteners at every other Crossmember
Decking Width 8 Feet
20T
Tilt Deck Tandem Axle | Electric Brakes
20T Specs↓
GVWR 26,000 lbs
Capacity (Distributed) 19,040 lbs
Base Trailer Weight 6,960 lbs
Frame Construction 8" x 4" Tubular Subframe with High Tensile Perimeter Rails
Crossmembers 4" x 2" Tubular Crossmembers on 16" Centers
Hitch 2-1/2" Lunette Eye, 60,000 lb Capacity Adjustable
Landing Gear 12,000 lb Capacity with Drop Foot
Safety Chains Qty 2 - 3/8" x 36" Grade 70 High Tensile Strength with Slip Hooks and Safety Latches
Deck Latch Over-Center Type with Tension Adjuster and Safety Pin
Cushion Cylinder 4" x 16" with Internal Metered Flow to Cushion Loading and Unloading
Load Securement 14 each (7 per side) 2-way Chain Slot/Stake Pocket System | 10 Each (5 per side) 1" Diameter D-Rings
Tool Compartment In Tongue with Lockable Lid
Axles Qty 2 - 10,000 lb Capacity
Hubs Oil Bath Type, 8 on 6.5" Bolt Circle 5/8" Lug Nuts
Brakes 12-1/4" x 3-1/2" Electric Brakes both Axles with 12 Volt Sealed Breakaway System
Suspension 3-point Spring with Axle Alignment Capability
Wheels 16" x 6" 8 on 6.5" Bolt Pattern
Tires ST235/85R16 Radial Load Range G
Finished Preparation Sandblast
Finish Coating 1 Stage Zink Based Paint
Electrical Phillips Sealed Harness System with Rubber Isolated LED Lighting
Decking 2" Rough Surface No.1 Grade Fir:Exterior Boareds Fastened at all Crossmembers
Decking Width 102"
20TS
Tilt Deck Tandem Axle | Electric Brakes
20TS Specs↓
GVWR 26,000 lbs
Capacity (Distributed) 18,160 lbs
Base Trailer Weight 7,840 lbs
Frame Construction 8" x 4" Tubular Subframe with High Tensile Perimeter Rails
Crossmembers 4" x 2" Tubular Crossmembers on 16" Centers
Hitch 2-1/2" Lunette Eye, 60,000 lb Capacity Adjustable
Landing Gear 12,000 lb Capacity with Drop Foot
Safety Chains Qty 2, 3/8" x 36" Grade 70 High Tensile Strength with Slip Hooks and Safety Latches
Deck Latch Over-Center Slider Shaft Latch with Tension Adjuster and Safety Pin
Cushion Cylinder 4" x 16" with Internal Metered Flow to Cushion Loading and Unloading
Load Securement 18 each (9 per side) 2-way Chain Slot/Stake Pocket System | 12 Each (6 per side) 1" Diameter D-Rings
Tool Compartment In Tongue with Lockable Lid
Axles Qty 2 - 10,000 lb Capacity
Hubs Oil Bath Type, 8 on 6.5" Bolt Circle 5/8" Lug Nuts
Brakes 12-1/4" x 3-1/2" Electric Brakes both Axles with 12 Volt Sealed Breakaway System
Suspension 3-point Spring with Axle Alignment Capability
Wheels 16" x 6" 8 on 6.5" Bolt Pattern
Tires ST235/85R16 Radial Load Range G
Finished Preparation Sandblast
Finish Coating 1 Stage Zink Based Paint
Electrical Phillips Sealed Harness System with Rubber Isolated LED Lighting
Decking 2" Rough Surface No.1 Grade Fir: Exterior Boards Fastened at all Crossmembers, Interior Boards Fastened at every other Crossmember
Decking Width 102"
24T
Tilt Deck Tandem Axle | Electric or Air Brakes
24T Specs Air Brakes↓
GVWR 31,200 lbs
Capacity (Distributed) 24,240 lbs
Base Trailer Weight 6,960 lbs
Frame Construction 8" x 4" Tubular Subframe with High Tensile Perimeter Rails
Crossmembers 4" x 2" Tubular Crossmembers on 16" Centers
Hitch 2-1/2" Lunette Eye, 60,000 lb. Capacity Adjustable
Landing Gear 12,000 lb Capacity with Drop Foot
Safety Chains Qty 2, 3/8" x 36" Grade 70 High Tensile Strength with Slip Hooks and Safety Latches
Deck Latch Over-Center Type with Tension Adjuster and Safety Pin
Cushion Cylinder 4" x 16" with Internal Metered Flow to Cushion Loading and Unloading
Load Securement 14 each (7 per side) 2-way Chain Slot/Stake Pocket System | 10 Each (5 per side) 1" Diameter D-Rings
Tool Compartment In Tongue with Lockable Lid
Axles Qty 2 - 12,000 lb. Capacity
Hubs Oil Bath Type, 8 on 6.5" Bolt Circle with 5/8" Lug Nuts
Brakes 12-1/4" x 5" S-CAM Full Air Brakes with Maxi Spring Brakes on One Axle, Automatic Slack Adjusters, 2D/2M ABS
Suspension 3-Point Spring with Axle Alignment Capability
Wheels 16" x 6" 8 on 6.5" Bolt Pattern
Tires ST235/85R16 Radial Load Range G
Finished Preparation Sandblast
Finish Coating 1 Stage Zink Based Paint
Electrical Phillips Sealed Harness System with Rubber Isolated LED Lighting
Decking 2" Rough Surface No.1 Grade Fir: Exterior Boards Fastened at all Crossmembers, Interior Boards Fastened at every other Crossmember
Decking Width 102"
24T Specs Electric Brakes↓
GVWR 31,200 lbs
Capacity (Distributed) 24,240 lbs
Base Trailer Weight 6,960 lbs
Frame Construction 8" x 4" Tubular Subframe with High Tensile Perimeter Rails
Crossmembers 4" x 2" Tubular Crossmembers on 16" Centers
Hitch 2-1/2" Lunette Eye, 60,000 lb. Capacity Adjustable
Landing Gear 12,000 lb Capacity with Drop Foot
Safety Chains Qty 2, 3/8" x 36" Grade 70 High Tensile Strength with Slip Hooks and Safety Latches
Deck Latch Over-Center Type with Tension Adjuster and Safety Pin
Cushion Cylinder 4" x 16" with Internal Metered Flow to Cushion Loading and Unloading
Load Securement 14 each (7 per side) 2-way Chain Slot/Stake Pocket System | 10 Each (5 per side) 1" Diameter D-Rings
Tool Compartment In Tongue with Lockable Lid
Axles Qty 2 - 12,000 lb. Capacity
Hubs Oil Bath Type, 8 on 6.5" Bolt Circle 5/8" Lug Nuts
Brakes 12-1/4" x 5-1/2" Electric Brakes on both Axles with 12 Volt Sealed Breakaway System
Suspension 3-Point Spring with Axle Alignment Capability
Wheels 16" x 6" 8 on 6.5" Bolt Pattern
Tires ST235/85R16 Radial Load Range G
Finished Preparation Sandblast
Finish Coating 1 Stage Zinc Based Paint
Electrical Phillips Sealed Harness System with Rubber Isolated LED Lighting
Decking 2" Rough Surface No.1 Grade Fir: Exterior Boards Fastened at all Crossmembers, Interior Boards Fastened at every other Crossmember
Decking Width 102"
24TS
Tilt Deck Tandem Axle | Electric or Air Brakes
24TS Specs Air Brakes↓
GVWR 31,200 lbs
Capacity (Distributed) 23,840 lbs
Base Trailer Weight 7,360 lbs
Frame Construction 8" x 4" Tubular Subframe with High Tensile Perimeter Rails
Crossmembers 4" x 2" Tubular Crossmembers on 16" Centers
Hitch 2-1/2" Lunette Eye, 60,000 lb. Capacity Adjustable
Landing Gear 12,000 lb Capacity with Drop Foot
Safety Chains Qty 2, 3/8" x 36" Grade 70 High Tensile Strength with Slip Hooks and Safety Latches
Deck Latch Over-Center Slider Shaft Latch with Tension Adjuster and Safety Pin
Cushion Cylinder 4" x 16" with Internal Metered Flow to Cushion Loading and Unloading
Load Securement 18 each (9 per side) 2-way Chain Slot/Stake Pocket System | 14 Each (7 per side) 1" Diameter D-Rings
Storage Compartment In Tongue with Lockable Lid
Axles Qty 2 - 12,000 lb. Capacity
Hubs Oil Bath Type, 8 on 6.5" Bolt Circle 5/8" Lug Nuts
Brakes 12-1/4" x 5" S-CAM Full Air Brakes with Maxi Spring Brakes on One Axle, Automatic Slack Adjuster, 2D/2M ABS
Suspension 3-point Spring with Axle Alignment Capability
Wheels 16" x 6" 8 on 6.5" Bolt Pattern
Tires ST235/85R16 Radial Load Range G
Finished Preparation Sandblast
Finish Coating 1 Stage Zinc Based Paint
Electrical Phillips Sealed Harness System with Rubber Isolated LED Lighting
Decking 2" Rough Surface No.1 Grade Fir: Exterior Boards Fastened at all Crossmembers, Interior Boards Fastened at every other Crossmember
Decking Width 102"
24TS Specs Electric Brakes↓
GVWR 31,200 lbs
Capacity (Distributed) 23,840 lbs
Base Trailer Weight 7,360 lbs
Frame Construction Tubular Subframe with High Tensile Perimeter Rails
Crossmembers 4" x 2" Tubular Crossmembers on 16" Centers
Hitch 2-1/2" Lunette Eye, 60,000 lb. Capacity Adjustable
Landing Gear 12,000 lb. Capacity with Drop Foot
Safety Chains Qty 2, 3/8" x 36" Grade 70 High Tensile Strength with Slip Hooks and Safety Latches
Deck Latch Over-Center Slider Shaft Latch with Tension Adjuster and Safety Pin
Cushion Cylinder 4" x 16" with Internal Metered Flow to Cushion Loading and Unloading
Load Securement 18 each (9 per side) 2-way Chain Slot/Stake Pocket System | 14 Each (7 per side) 1" Diameter D-Rings
Tool Compartment In Tongue with Lockable Lid
Axles Qty 2 - 12,000 lb. Capacity
Hubs Oil Bath Type, 8 on 6.5" Bolt Circle 5/8" Lug Nuts
Brakes 12-1/4" x 5" Electric Brakes both Axles with 12 Volt Sealed Breakaway System
Suspension 3-Point Spring with Axle Alignment Capability
Wheels 16" x 6" 8 on 6.5" Bolt Pattern
Tires ST235/80R16 Radial Load Range E
Finished Preparation Sandblast
Finish Coating Powder Coat
Electrical Phillips Sealed Harness System with Rubber Isolated LED Lighting
Decking 2" Rough Surface No.1 Grade Fir with Fasteners at all Crossmembers
Decking Width 102"
40T
Tilt Deck Tandem Axle | Air Brakes
40T Specs↓
GVWR 51,220 lbs
Capacity (Distributed) 41,620 lbs
Base Trailer Weight 9,600 lbs
Frame Construction Tubular Subframe with High Tensile Strength Perimeter Rails
Crossmembers 5" Tubular Crossmembers on 12" and 16" Centers
Hitch 3" ID Lunette Eye, 90,000 lb. Capacity, Adjustable Height
Landing Gear 35,000 lb. Capacity with Drop Foot
Safety Chains Qty 2 - 1/2" x 36" Grade 70 High Tensile Strength with Slip Hooks and Safety Latches
Deck Latch Over-Center Type with Tension Adjuster and Safety Pin
Cushion Cylinder 4" x 16" with Internal Metered Flow to Cushion Loading and Unloading
Load Securement 14 Each (7 per side) 2-way Chain Slot/Stake Pocket System | 10 Each (5 per side) 1" Diameter D-Rings
Tool Compartment Combination Open Tool Tray and Lockable Lid
Axles Qty 2 - 25,000 lb Capacity
Hubs 8 on 275mm Bolt Circle with M22 Lug Nuts
Brakes 12-1/4" x 7-1/2" S-CAM Full Air Brakes with Maxi Spring Brakes on both Axles, Automatic Slack Adjusters, Equipped with 2S/2M ABS
Drums Steel Outboard Type
Suspension Hutch H-9700 Tandem-Axle with Fabricated Hangers and Axle Alignment Capability
Wheels 17.5" x 6.75" Uni-Mount 8 on 275mm Bolt Pattern
Tires 215/75R 17.5 Radial Load Range H
Finished Preparation Sandblast
Finish Coating 1 Stage Zinc Based Paint
Electrical Phillips Sealed Harness System with Rubber Isolated LED Lighting
Decking 2" Rough Surface No.1 Grade Fir: Exterior Boards Fastened at all Crossmembers, Interior Boards Fastened at every other Crossmember
Decking Width 102"
40TS
Tilt Deck Tandem Axle | 6 ft Stationary Deck| Air Brakes
40TS 6Ft Specs↓
GVWR 52,000 lbs
Capacity (Distributed) 40,880 lbs
Base Trailer Weight 11,120 lbs
Frame Construction Tubular Subframe with High Tensile Strength Perimeter Rails
Crossmembers 5" Tubular Crossmembers on 12" and 16" Centers
Hitch 3" ID Lunette Eye, 90,000 lb Capacity, Adjustable Height
Landing Gear 35,000 lb Capacity with Drop Foot
Safety Chains Qty 2 - 1/2" x 36" Grade 70 High Tensile Strength with Slip Hooks and Safety Latches
Deck Latch Over-Center Slider Shaft Latch with Tension Adjuster and Safety Pin
Cushion Cylinder 4" x 16" with Internal Metered Flow to Cushion Loading and Unloading
Load Securement 18 Each (9 per side) 2-Way Chain Slot/Stake Pocket System | 14 Each (7 per side) 1" Diameter D-Rings
Tool Compartment Combination Open Tool Tray and Lockable Lid
Axles Qty 2 - 25,000 lb Capacity
Hubs 8 on 275mm Bolt Circle with M22 Lug Nuts
Brakes 12-1/4" x 7-1/2" S-CAM Full Air Brakes with Maxi Spring Brakes on both Axles, Automatic Slack Adjusters, Equipped with 2S/2M ABS
Drums Steel Outboard Type
Suspension Hutch H-9700 Tandem-Axle with Fabricated Hangers and Axle Alignment Capability
Wheels 17.5" x 6.75" Uni-Mount 8 on 275mm Bolt Pattern
Tires 215/75R 17.5 Radial Load Range H
Finished Preparation Sandblast
Finish Coating 1 Stage Zinc Based Paint
Electrical Phillips Sealed Harness System with Rubber Isolated LED Lighting
Decking 2" Rough Surface No.1 Grade Fir: Exterioir Boards Fastened at all Crossmembers, Interior Boards Fastened at every other Crossmember
Decking Width 102"
42T
Tilt Deck Tandem Axle | Air Brakes
42T Specs↓
GVWR 52,000 lbs
Capacity (Distributed) 41,940 lbs
Base Trailer Weight 10,060 lbs
Frame Construction Tubular Subframe with High Tensile Strength Perimeter Rails
Crossmembers 5" Tubular Crossmembers on 12" and 16" Centers
Hitch 3" ID Lunette Eye, 90,000 lb Capacity, Adjustable Height
Landing Gear 35,000 lb Capacity with Drop Foot
Safety Chains Qty 2 - 1/2" x 36" Grade 70 High Tensile Strength with Slip Hooks and Safety Latches
Deck Latch Over-Center Type with Tension Adjuster and Safety Pin
Cushion Cylinder 4" x 16" with Internal Metered Flow to Cushion Loading and Unloading
Load Securement 14 each (7 per side) 2-way Chain Slot/Stake Pocket System | 10 Each (5 per side) 1" Diameter D-Rings
Tool Compartment Combination Open Tool Tray and Lockable Lid
Axles Qty 2 - 25,000 lb Capacity
Hubs 10 on 285.75mm Bolt Circle with M22 Lug Nuts
Brakes 16-1/2" x 7" S-CAM Full Air Brakes with Maxi Spring Brakes on both Axles, Automatic Slack Adjusters, Equipped with 2S/2M ABS
Drums Steel Outboard Type
Suspension Hutch H-9700 Tandem-Axle with Fabrication Hangers and Axle Alignment Capability
Wheels 22.5" x 8.25" Uni-Mount 10 on 285.75mm Bolt Pattern
Tires 255/70R 22.5 Radial Load Range H
Finished Preparation Sandblast
Finish Coating 1 Stage Zinc Based Paint
Electrical Phillips Sealed Harness System with Rubber Isolated LED Lighting
Decking 2" Rough Surface No.1 Grade Fir: EXterior Boards Fastened at all Crossmembers, Interior Boards Fastened at every other Crossmember
Decking Width 102"
42TS
Tilt Deck | Tandem Axle | 6 ft Stationary Deck | Air Brakes
42TS 5Ft Specs↓
GVWR 52,000 lbs
Capacity (Distributed) 39,820 lbs
Base Trailer Weight 12,180 lbs
Frame Construction Tubular Subframe with High Tensile Strength Perimeter Rails
Crossmembers 5" Tubular Crossmembers on 12" and 16" Centers
Hitch 3" ID Lunette Eye, 90,000 lb Capacity Adjustable Height
Landing Gear 35,000 lb Capacity with Drop Foot
Safety Chains Qty 2 - 1/2" x 36" Grade 70 High Tensile Strength with Slip Hooks and Safety Latches
Deck Latch Over-Center Slider Shaft Latch with Tension Adjuster and Safety Pin
Cushion Cylinder 4" x 16" with Internal Metered Flow to Cushion Loading and Unloading
Load Securement 18 Each (9 per side) 2-way Chain Slot/Stake Pocket Systemm| 14 Each (7 per side) 1" Diameter D-Rings
Tool Compartment Combination Open Tool Tray and Lockable Lid
Axles Qty 2 - 25,000 lb Capacity
Hubs 10 on 285.75mm Bolt Circle with M22 Lug Nuts
Brakes 16-1/2" x 7" S-CAM Full Air Brakes with Maxi Spring Brakes on both Axles, Automatic Slack Adjusters, Equipped with 2S/2M ABS
Drums Steel Outboard Type
Suspension Hutch H-9700 Tandem-Axle with Fabricated Hangers and Axle Alignment Capability
Wheels 22.5" x 8.25" Uni-Mount 10 on 285.75mm Bolt Pattern
Tires 255/70R 22.5 Radial Load Range H
Finished Preparation Sandblast
Finish Coating 1 Stage Zinc Based Paint
Electrical Phillips Sealed Harness System with Rubber Isolated LED Lighting
Decking 2" Rough Surface No.1 Grade Fir: Exterior Boards Fastened at all Crossmembers, Interior Boards Fastened at every other Crossmember
Decking Width 102"
50FTS
Fifthwheel Tilt Deck | Tandem Axel | Air Brakes
50FTS Specs↓
GVWR 60,750 lbs
Capacity (Distributed) 48,670 lbs
Base Trailer Weight 12,080 lbs
Frame Construction Fabricated Web and Flange Subframe with A-656 High Tensile Strength Perimeter Rails
Crossmembers 5" Tubular Crossmembers on 12" and 16" Centers
Hitch King Pin Type 150,000 PSI Ultimate Strength, 115,000 Yield Strength
Landing Gear 2-Speed 70,000 lb Dynamic Load, 100,000 lb Static Load
Safety Chains Qty 2 - 1/2" x 36" Grade 70 High Tensile Strength with Slip Hooks and Safety Latches
Deck Latch Over-Center Type with Tension Adjuster, Lever, and Safety Pin
Cushion Cylinder 4" x 16" with Internal Metered Flow to Cushion Loading and Unloading
Load Securement 24 Each (12 per side) 2-way Chain Slot/Stake Pocket System | 14 Each (7 per side) 1" Diameter D-Rings
Tool Compartment Qty 2, Located in Fifth Wheel Upper Deck
Axles Qty 2, 25,000 lb Capacity
Hubs 8 on 275mm Bolt Circle with M22 Lug Nuts
Brakes 16-1/2" x 7" S-CAM Full Air Brakes with Maxi Spring Brakes on both Axles, Automatic Slack Adjusters, Equipped with 2S/2M ABS
Drums Steel Outboard Type
Suspension Hutch H-9700 Tandem-Axle with Fabricated Hangers and Axle Alignment Capability
Wheels 17.5" x 6.75" Uni-Mount 8 on 275mm Bolt Pattern
Tires ST 215/75R 17.5 Radial Load Range H
Finished Preparation Sandblast
Finish Coating 1-Stage Zink BAsed Paint
Electrical Phillips Sealed Harness System with Rubber Isolated LED Lighting
Decking 2" Rough Surface No.1 Grade Fir: Exterior Boards Fastened at Every Crossmember, Interior Boards Fastened at Every Other Crossmember
Decking Width 102"
54TS
Tilt Deck | Triple Axle | 5ft Deck
54TS Specs ↓
GVWR 67,200 lbs
Capacity (Distributed) 53,260 lbs
Base Trailer Weight 13,940 lbs
Frame Construction Tubular Subframe with High Tensile Perimeter Rails
Crossmembers 5" Tubular Crossmembers on 12" and 16" Centers
Hitch 3" ID Lunette eye, 90,000 lb. Capacity, Adjustable Height
Landing Gear 35,000 lb Capacity with Drop Foot
Safety Chains Qty 2 - 1/2" x 36" Grade 70 High Tensile Strength with Slip Hooks and Safety Latches
Deck Latch Over-Center Slider Shaft with Tension Adjuster, Lever and Safety Pin
Cushion Cylinder 4" x 16" with Internal Metered Flow to Cushion Loading and Unloading
Load Securement 18 Each (9 per side) 2-way Chain Slot/Stake Pocket System | 14 Each (7 per side) 1" Diameter D-Rings
Tool Compartment Combination Open Tool Tray and Lockable Toolbox
Axles Qty 3 - 25,000 lb Capacity
Hubs 10 on 285.75mm Bolt Circle with M22 Lug Nuts
Brakes 12-1/4" x 7-1/2" S-CAM Full Air Brakes with Maxi Spring Brakes on both Axles, Automatic Slack Adjusters, Equipped with 2S/2M ABS
Drums Steel Outboard Type
Suspension Hutch H-9700 Tri-Axle with Fabricated Hangers and Axle Alignment Capability
Wheels 22.5" x 8.25" Uni-Mount 10 on 285.75mm Bolt Pattern
Tires 255/70R 22.5 Radial Load Range H
Finished Preparation Sandblast
Finish Coating 1 Stage Zinc Based Paint
Electrical Phillips Sealed System with Rubber Isolated LED Lighting
Decking 2" Oak on Outer Deck Areas and 2" Rough Surface No. 1 Grade Fir with Fasteners at every other Crossmember
Decking Width 102"
60TS
Tilt Deck | Triple Axle | Air Brakes
60TS 6Ft Specs↓
GVWR 72,940 lbs
Capacity (Distributed) 60,000 lbs
Base Trailer Weight 12,940 lbs
Frame Construction Tubular Subframe with High Tensile Perimeter Rails
Crossmembers 5" Tubular Crossmembers on 12" and 16" Centers
Hitch 3" ID Lunette eye, 90,000 lb Capacity, Adjustable Height
Landing Gear 35,000 lb Lift Capacity with Drop Foot
Safety Chains Qty 2 - 1/2" x 36" Grade 70 High Tensile Strength with Slip Hooks and Safety Latches
Deck Latch Over-Center Slider Shaft with Tension Adjuster, Lever and Safety Pin on Driver Side
Cushion Cylinder 4" x 16" with Internal Metered Flow to Cushion Loading and Unloading
Load Securement 18 Each (9 per side) 2-way Chain Slot/Stake Pocket System | 14 Each (7 per side) 1" Diameter D-Rings
Tool Compartment Combination Open Tool Tray and Lockable Toolbox
Axles Qty 3 - 25,000 lb Capacity
Hubs 8 on 275mm Bolt Circle with M22 Lug Nuts
Brakes 12-1/4" x 7-1/2" S-CAM Full Air Brakes with Maxi Spring Brakes on both Axles, Automatic Slack Adjusters, Equipped with 2S/2M ABS
Drums Steel Outboard Type
Suspension Hutch H-9700 Tri-Axle with Fabricated Hangers and Axle Alignment Capability
Wheels 17.5" x 6.75" Uni-Mount 8 on 275mm Bolt Pattern
Tires ST 235/75R 17.5 Radial Load Range J
Finished Preparation Sandblast
Finish Coating 1 Stage Zinc Based Paint
Electrical Phillips Sealed System with Rubber Isolated LED Lighting
Decking 2" Oak on Outer Deack Areas Fastened at all Crossmembers, and 2" Rough Surface No.1 Grade Fir with Fasteners at every other Crossmember
Decking Width 102"
